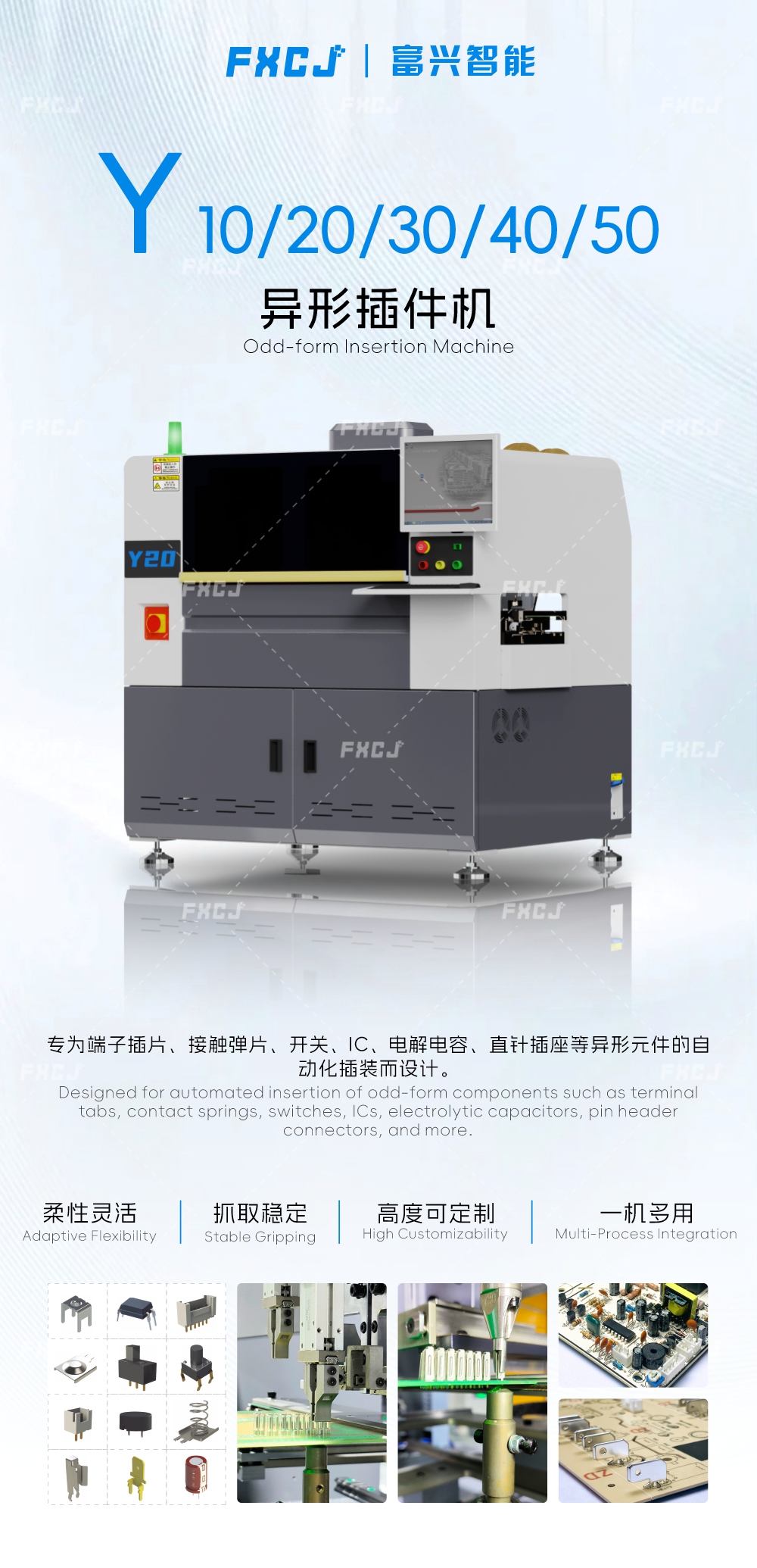

全自動異形元件插件機Y系列

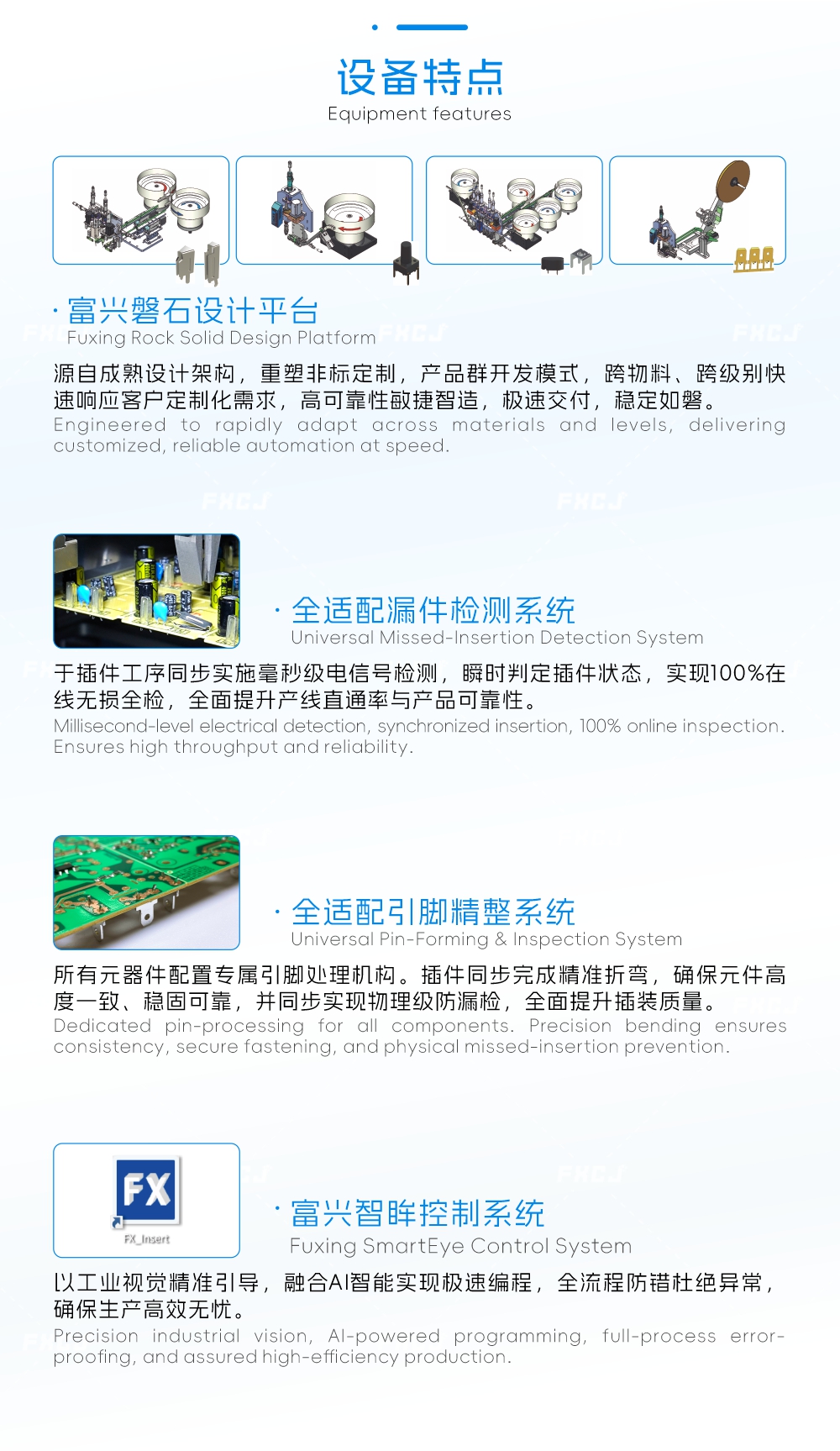

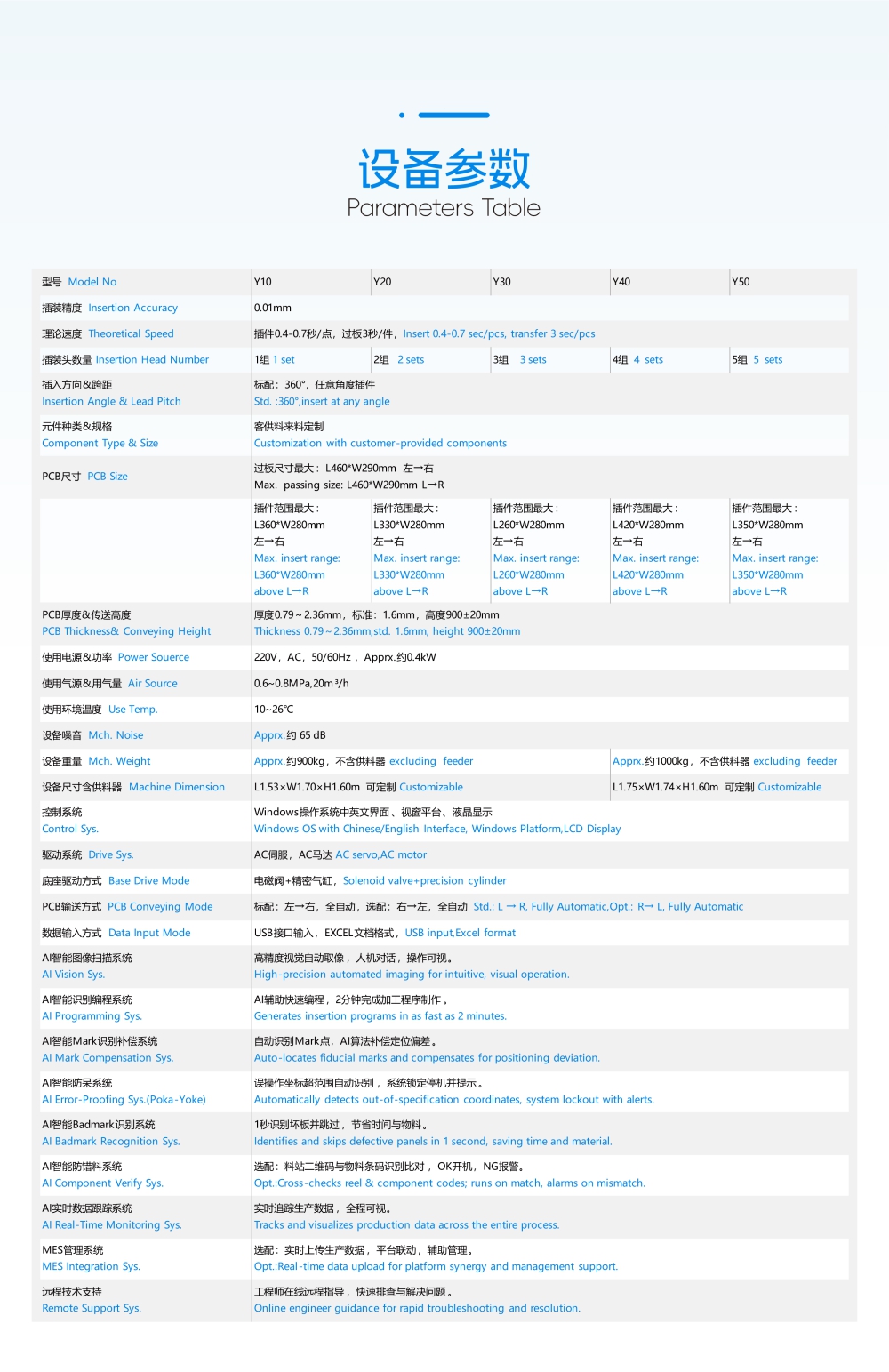

| 型號 Model No | Y10 | Y20 | Y30 | Y40 | Y50 | ||
| 插裝精度 Insertion Accuracy | 0.01mm | ||||||
| 理論速度 Theoretical Speed | 插件0.4-0.7秒/點，過板3秒/件，ｉｎｓｅｒｔ 0.4-0.7 sec/pcs, transfer 3 sec/pcs | ||||||
| 插裝頭數量 Insertion Head Number | 1組 1 set | 2組 2 sets | 3組 3 sets | 4組 4 sets | 5組 5 sets | ||
| 插入方向&跨距 Insertion Angle & Lead Pitch | 標配：360°，任意角度插件 Std. :360°,ｉｎｓｅｒｔ at any angle | ||||||
| 元件種類&規格 Component Type & Size | 客供料來料定制 Customization with customer-provided components | ||||||
| PCB尺寸 PCB Size | 過板尺寸最大：L460*W290mm 左→右 Max. passing size: L460*W290mm L→R | ||||||
| 插件范圍最大： L360*W280mm 左→右 Max. ｉｎｓｅｒｔ range: L360*W280mm above L→R | 插件范圍最大： L330*W280mm 左→右 Max. ｉｎｓｅｒｔ range: L330*W280mm above L→R | 插件范圍最大： L260*W280mm 左→右 Max. ｉｎｓｅｒｔ range: L260*W280mm above L→R | 插件范圍最大： L420*W280mm 左→右 Max. ｉｎｓｅｒｔ range: L420*W280mm above L→R | 插件范圍最大： L350*W280mm 左→右 Max. ｉｎｓｅｒｔ range: L350*W280mm above L→R | |||
| PCB厚度&傳送高度 PCB Thickness& Conveying Height | 厚度0.79～2.36mm，標準：1.6mm，高度900±20mm Thickness 0.79～2.36mm,std. 1.6mm, height 900±20mm | ||||||
| 使用電源&功率 Power Souerce | 220V，AC，50/60Hz ，Apprx.約0.4kW | ||||||
| 使用氣源&用氣量 Air Source | 0.6~0.8MPa,20m3/h | ||||||
| 使用環境溫度 Use Temp. | 10~26℃ | ||||||
| 設備噪音 Mch. Noise | Apprx.約 65 dB | ||||||
| 設備重量 Mch. Weight | Apprx.約900kg，不含供料器 excluding feeder | Apprx.約1000kg，不含供料器 excluding feeder | |||||
| 設備尺寸含供料器 Machine Dimension | L1.53×W1.70×H1.60m 可定制 Customizable | L1.75×W1.74×H1.60m 可定制 Customizable | |||||
| 控制系統 Control Sys. | Windows操作系統中英文界面、視窗平臺、液晶顯示 Windows OS with Chinese/English Interface, Windows Platform,LCD Display | ||||||
| 驅動系統 Drive Sys. | AC伺服，AC馬達 AC servo,AC motor | ||||||
| 底座驅動方式 Base Drive Mode | 電磁閥+精密氣缸，Solenoid valve+precision cylinder | ||||||
| PCB輸送方式 PCB Conveying Mode | 標配：左→右，全自動，選配：右→左，全自動 Std.: L → R, Fully Automatic,Opt.: R→ L, Fully Automatic | ||||||
| 數據輸入方式 Data Input Mode | USB接口輸入，EXCEL文檔格式，USB input,Excel format | ||||||
| AI智能圖像掃描系統 AI Vision Sys. | 高精度視覺自動取像，人機對話，操作可視。 High-precision automated imaging for intuitive, visual operation. | ||||||
| AI智能識別編程系統 AI Programming Sys. | AI輔助快速編程，2分鐘完成加工程序制作。 Generates insertion programs in as fast as 2 minutes. | ||||||
| AI智能Mark識別補償系統 AI Mark Compensation Sys. | 自動識別Mark點，AI算法補償定位偏差。 Auto-locates fiducial marks and compensates for positioning deviation. | ||||||
| AI智能防呆系統 AI Error-Proofing Sys.(Poka-Yoke) | 誤操作坐標超范圍自動識別，系統鎖定停機并提示。 Automatically detects out-of-specification coordinates, system lockout with alerts. | ||||||
| AI智能Badmark識別系統 AI Badmark Recognition Sys. | 1秒識別壞板并跳過，節省時間與物料。 Identifies and skips defective panels in 1 second, saving time and material. | ||||||
| AI智能防錯料系統 AI Component Verify Sys. | 選配：料站二維碼與物料條碼識別比對，OK開機，NG報警。 Opt.:Cross-checks reel & component codes; runs on match, alarms on mismatch. | ||||||
| AI實時數據跟蹤系統 AI Real-Time Monitoring Sys. | 實時追蹤生產數據，全程可視。 Tracks and visualizes production data across the entire process. | ||||||
| MES管理系統 MES Integration Sys. | 選配：實時上傳生產數據，平臺聯動，輔助管理。 Opt.:Real-time data upload for platform synergy and management support. | ||||||
| 遠程技術支持 Remote Support Sys. | 工程師在線遠程指導，快速排查與解決問題。 Online engineer guidance for rapid troubleshooting and resolution. | ||||||
